SONIC WELDER

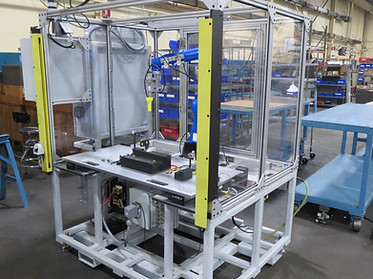

18618 Robot Sonic Welder

(Special Equipment)

FUNCTIONALITY

  • Brief Description: Sonic welding of pillar insets for automotive

  • Both a right- and left-hand station built

  • Auto detects correct insert is loaded.

  • Capable of 4-part numbers

  • Designed for up to 2 additional future robots.

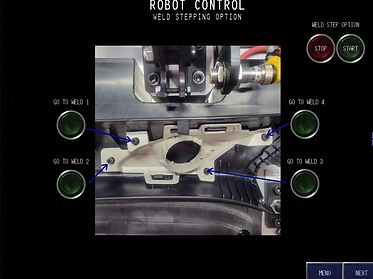

  • Full weld parameter control from HMI

  • Full color display of cycle times/counts, setup screens, status screens, fault screens, troubleshooting screen.

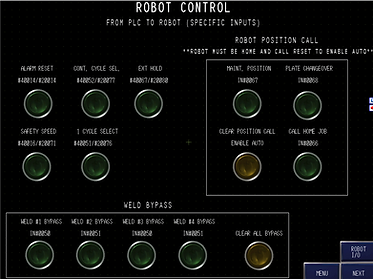

  • Interfacing to Motoman robot and Dukane Welder through HMI

  • Machine built for future part changes, additions.



COMPONENTS

  • Allen Bradley PLC

  • ProFace 10" HMI

  • Yaskawa –Motoman GP7 robot

  • Yaskawa-Motoman YRC1000 controller

  • Dukane Welding System

GetImage (8).jpeg
GetImage (9).jpeg
GetImage (9).png
GetImage (7).png
GetImage (8).png
Stainless Steel
